Does Home Depot Sell Screw Piles? (And Will They Work in Calgary?)

Yes. Home Depot Canada carries Pylex adjustable foundation screws — at the time of writing, the 50-inch model sells for about $42.72 and carries a customer rating of roughly 3.8 out of 5 across several hundred reviews.

They are a real product and they have real uses. They are also the source of the single most common foundation mistake we get called out to fix in Calgary, and the reason is a number.

The number that matters: 50 inches

The standard Pylex screw is 50 inches long — about 1.27 metres.

Frost in the Calgary area penetrates roughly 1.2 to 1.8 metres in a typical winter.

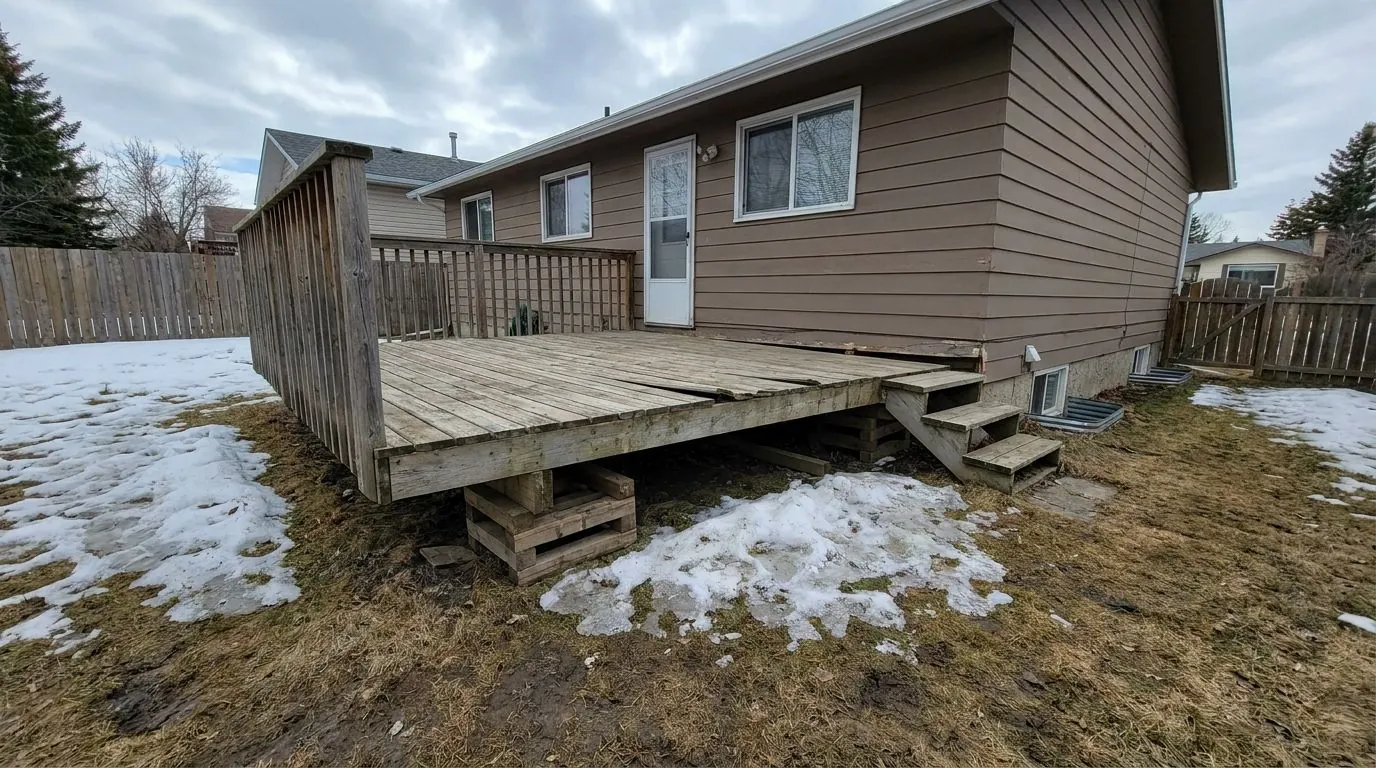

Read those two figures together. A 50-inch screw driven flush finishes at the very shallowest end of the frost range, and in a colder year or a more exposed site, above it. Anything bearing above the frost line is sitting in ground that lifts when it freezes and drops when it thaws.

That is the whole problem. It is not that the product is bad — it is that a length that is fine in a milder climate is marginal here.

Pylex sell extensions, and used properly they help. But at that point you are hand-driving a lengthening column of steel into Alberta clay, which brings us to the second issue.

What they are genuinely good for

Be fair to the product. Hand-driven foundation screws are a sensible choice for:

• Garden sheds and small outbuildings
• Ground-level decks and landings not attached to the house
• Stairs and small landings
• Pathways, and light structures generally

For those, the loads are small, the consequences of a little movement are small, and the cost and effort saved over concrete are real.

Where they run out

Frost depth, as above — the main one in Calgary.

Rocks and roots. A hand-driven screw stops dead against a cobble. Our ground west and north of the city is full of them. You cannot torque your way past a rock with a 2×4.

Load. These are light-duty. They are not for a multi-storey addition, a garage carrying a grade beam, or anything holding up part of your house.

No verification. This is the quiet one. A hand-driven screw gives you no torque reading, so you have no idea what capacity you actually achieved. You have a screw at a depth. Whether it carries the load is an assumption.

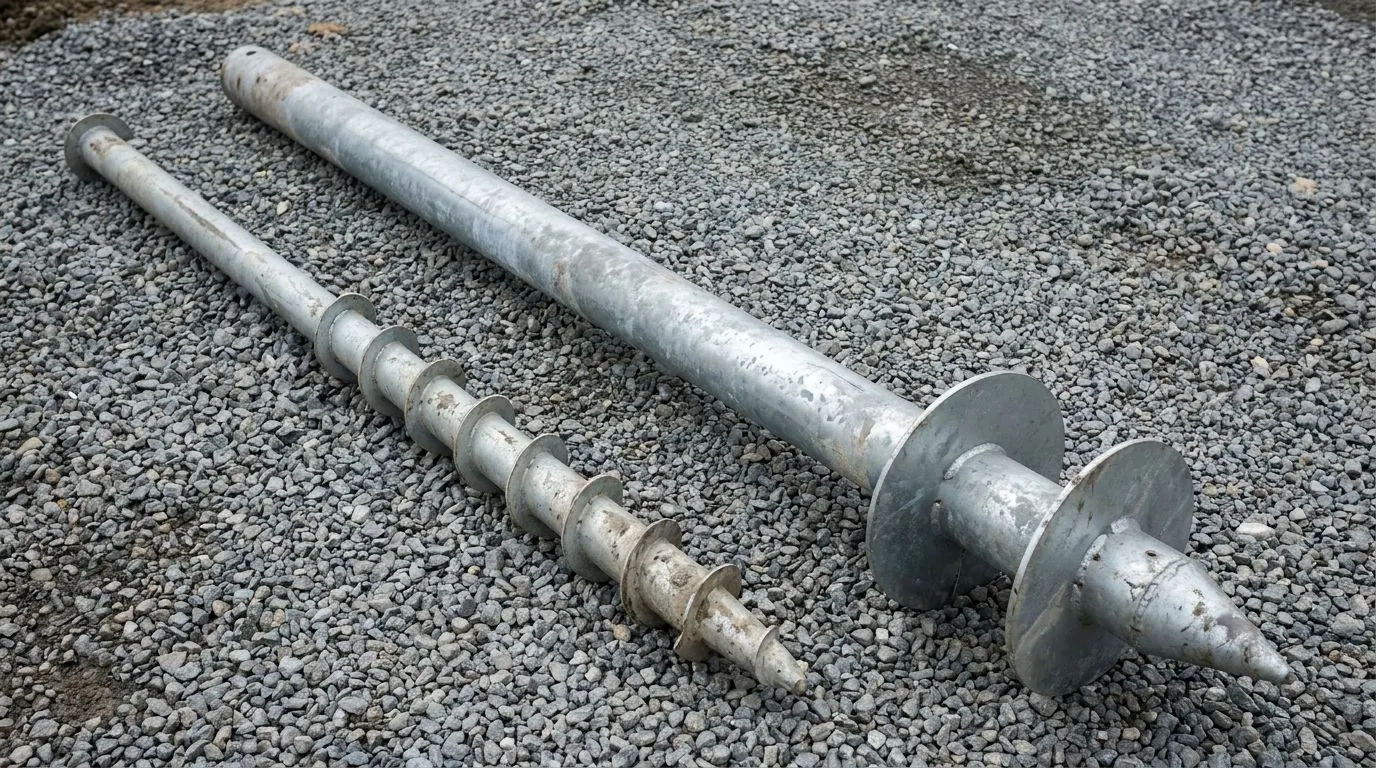

When you need an engineered pile instead

If any of these are true, the hardware-store version is not the right tool:

• The structure attaches to your house
• A permit is required, and the permit needs engineered drawings
• The deck is high enough that failure would matter
• You are on till, cobble or anything west toward Cochrane
• You need documented capacity for an inspection or a sale

The honest advice

If you are building a 8×8 ground-level deck or a shed, buy the screws, watch a video, and enjoy your Saturday. Genuinely — that is a reasonable project and you do not need us.

If you are attaching to the house, going above knee height, or the permit desk has asked for drawings, the 50-inch screw is not the answer, and adding extensions by hand does not turn it into one.

The reason we write this rather than talk you out of DIY entirely is that the projects where it works are not our projects anyway — and the ones where it does not are much cheaper to do properly the first time than to dig out and redo after a winter.

---

Not sure which side of that line your project falls on? Send us the dimensions and we will tell you straight — get a quote, or read how deep screw piles need to go in Alberta.
