Screw Piles in Calgary, AB
Screw pile and helical pile installation across Calgary — NW, NE, SW and SE. City of Calgary permit support, local clay expertise, no travel charge.
Chinook Piling installs engineered screw pile foundations across Calgary. Decks, garages and grade beams, home additions, and underpinning for footings that have started to move — all torque-verified, with stamped drawings where the permit calls for them. No travel charge, and quotes back inside 48 hours.
Quick Facts
- Region
- City of Calgary
- Population
- 1,306,784
- Postal Codes
- T1Y, T2A, T2C, T2E, T2H, T2J, T2N, T3A, T3H, T3K
- Quotes
- Quote in 48 hours
Building on Calgary Ground
Ground conditions
Glaciolacustrine clay with high shrink-swell potential through the north and east, older variable fill across the inner city, and perched water tables in the Bow and Elbow river valleys. Frost depth runs 1.2–1.8 m citywide.
Who issues your permit
City of Calgary is the authority having jurisdiction here. The City of Calgary is the authority. A structural permit is the usual requirement, and depending on what you are building a development permit under the Land Use Bylaw may come first — garden suites and additions that change a footprint routinely do. Sites on or near a river escarpment attract more scrutiny than a flat suburban lot, and geotechnical input is reasonable to expect there. Where the City wants engineering, our drawings are stamped by an Alberta P.Eng. through an APEGA permit-holding firm, and every pile ships with its torque log and as-builts. Fees and review timelines come from the City, not from us.
What we install here
Decks, detached garages and grade beams, home additions, garden suites, and tight-access inner-city work.
The ground under Calgary
There is no single Calgary soil profile, and quoting the city as though there were is the commonest mistake we see. The north and east sit on glaciolacustrine clay with high shrink-swell potential — the ground that lifts one corner of a deck over a wet spring and drops it again by August. Along the Bow and the Elbow you get river-terrace gravels, silts and sands instead, where depth to competent bearing can change across a single back yard.
The valley communities carry perched water as well, sitting above the regional groundwater level. That makes excavating and forming a footing miserable. It affects a screw pile far less, which is much of why piles get specified along those terraces at all.
In the inner city the ground is barely geology any more. A lot in Killarney, Renfrew or Mount Pleasant may have been built on, demolished and rebuilt more than once, and the back yard can hide demolition rubble, coal ash, a filled-in cistern or the footings of a house that came down forty years ago. None of that shows from the surface. It is why we accept a pile on measured torque rather than a specified depth — two piles three metres apart here can finish at genuinely different depths and both be correct.

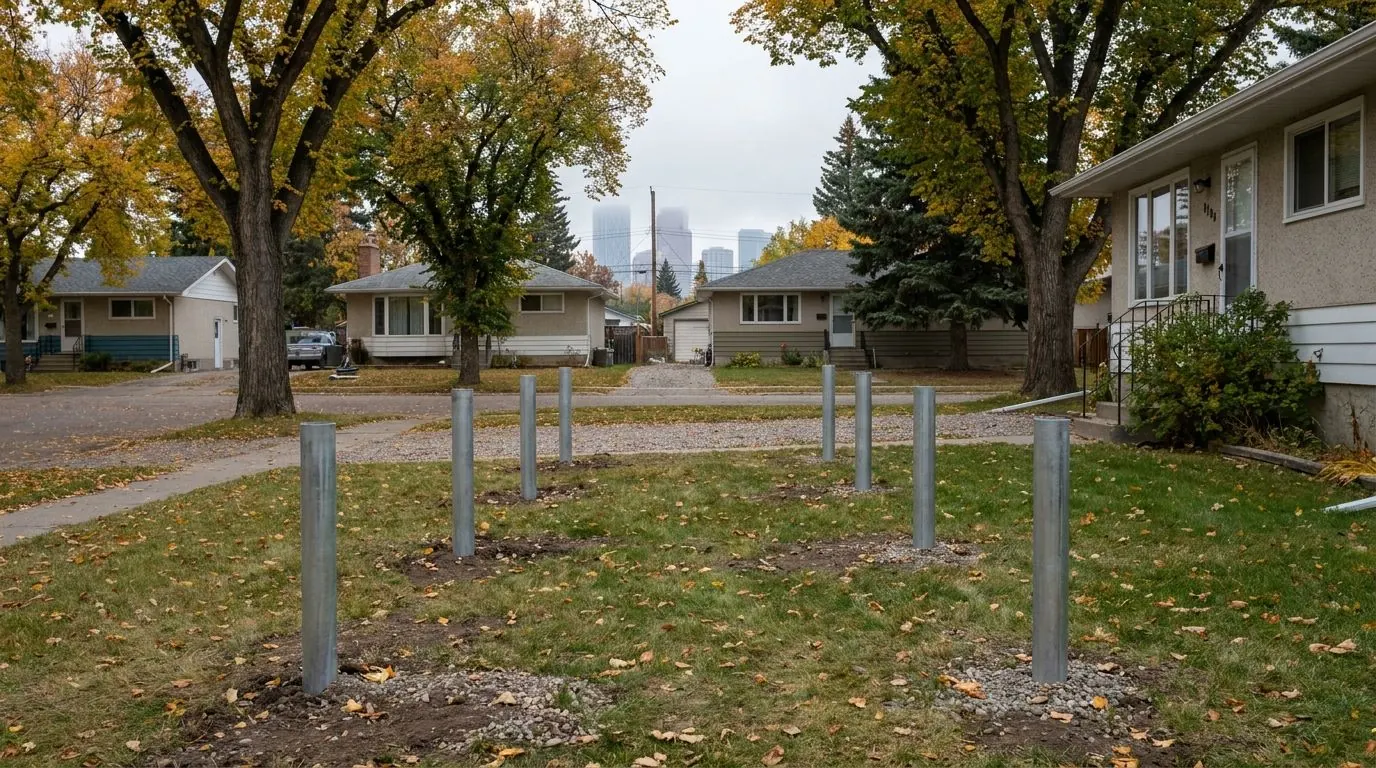

What gets built here

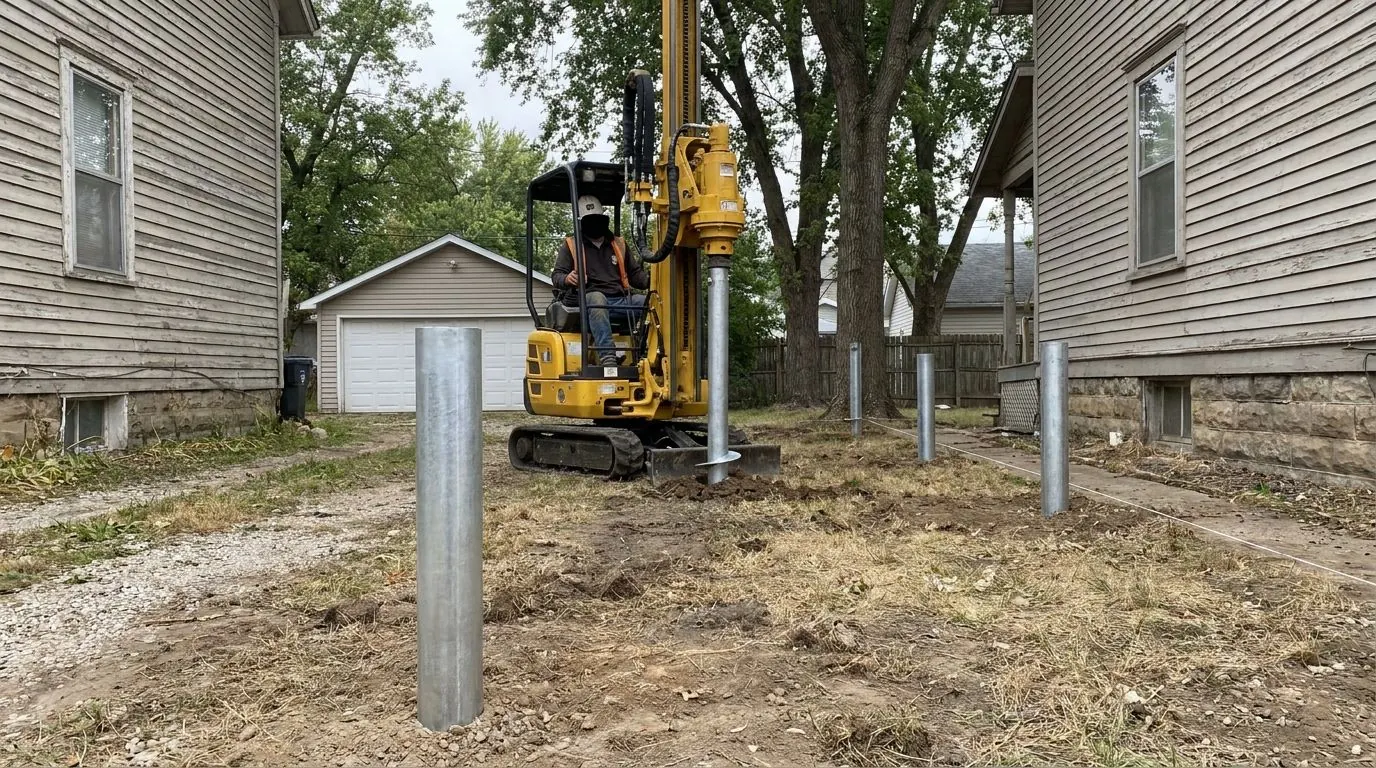

Most of our Calgary work is second-generation building on established lots: garden suites and laneway builds, rear additions, detached garages on pile-supported grade beams, deck rebuilds. The constraint is almost never the ground. It is access. A 7.5-metre inner-city lot with a house on one side, a fence on the other and a rear lane as the only way in will not take a concrete truck or a full-size excavator, and mature boulevard trees rule out widening the approach.
Helical equipment comes down the lane, spoil is essentially nil, there is no forming and no cure window, and the neighbours get their street back the same day. On the newer suburban edge the job changes again: open access, uniform clay, and ordinary deck, hot tub and garage loads on ground that moves seasonally.
Depth is decided by installation torque, not a fixed number — a pile is driven until torque confirms the engineered capacity. On ground like this that can mean two piles metres apart finishing at different depths, and both being correct. How deep screw piles go in Alberta .
Where we work in Calgary
This map shows the area we serve, not a shop you can visit. Chinook Piling is a mobile piling contractor — the crew, the machine and the piles come to your site, so we work out of trucks rather than a storefront. We cover Calgary as part of our regular working radius, which is why there is no travel charge on quotes here.
Permits for work shown on this map are issued by City of Calgary.
Services Available in Calgary
From a handful of deck piles through to grade beams, underpinning and commercial foundations. Select a service for detail specific to Calgary.
Deck Foundations
No excavation, no cure time. Frame the same day.
Garage Foundations & Grade Beams
Engineered pile and grade beam foundations for Calgary clay.
Home Additions & Sunrooms
Piles placed tight to an existing foundation without disturbing it.
RTM, Modular & Mobile Home Foundations
Permanent engineered foundations for RTM and modular homes.
Foundation Underpinning
Stop a settling foundation and hold it on engineered piles.
Foundation Lifting & Levelling
Lift settled structures back toward original elevation.
Basement Wall Anchors & Tiebacks
Stop a bowing basement wall moving — and often pull it back.
Slab Jacking & Concrete Lifting
Raise settled concrete back to level without replacing the slab.
Commercial Piling
Grade beams, solar arrays, sign bases and EV charging foundations.
Industrial & Oilfield Piling
Compressor stations, pipe racks, wellheads and remote-access sites.
Engineering & Pile Load Testing
Load testing, torque-to-capacity correlation and stamped drawings.
Nearby Areas We Serve
In addition to Calgary, our service area covers these nearby communities.
Calgary conditions and work
Screw Pile Questions in Calgary
How deep do screw piles need to go in Alberta?
Are screw piles cheaper than concrete?
What are the downsides of screw piles?
Can screw piles be installed in winter?
Do you charge a travel fee to Calgary?
Need screw piles in Calgary?
Serving Calgary and the surrounding communities. Call us today for prompt, professional piling service.
