Screw Piles in Chestermere, AB

The ground under Chestermere

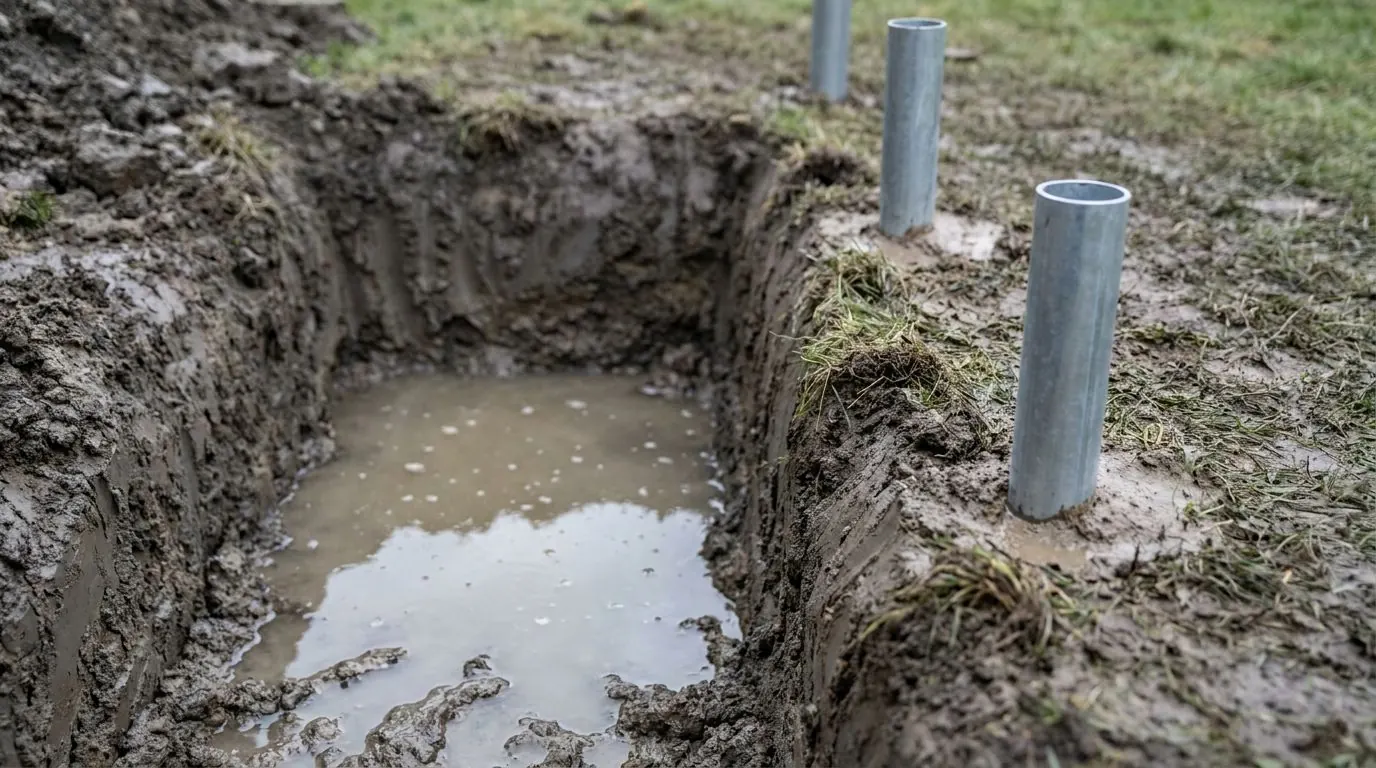

Chestermere Lake is not a natural lake. It is a reservoir on the Western Irrigation District canal system, dammed and fed from the Bow, and that one fact changes how you think about ground water here. The surrounding soil is the heavy clay of the plain east of Calgary, but near the shoreline and along the canal alignments the water table sits high and answers to irrigation operations as much as to rainfall — including the drawdown the WID carries out each autumn ahead of winter.

Saturated clay is weak clay, and near the water it can stay soft well below the depth a conventional footing would sit. The strategy is to pass through it into competent strata underneath, verified by installation torque, because assuming a depth on this ground is guesswork. What matters commercially is that groundwater does not obstruct a helical pile the way it obstructs an excavation: digging and forming a footing beside the lake means fighting water in the hole, and screwing a pile through the same profile does not.

Away from the water the inland subdivisions sit on ordinary high-plasticity prairie clay with the same shrink-swell behaviour as Airdrie or northeast Calgary. Chestermere is really two markets — a saturated shoreline strip and a conventional clay-plain suburb behind it — and the right design differs between them.

What gets built here

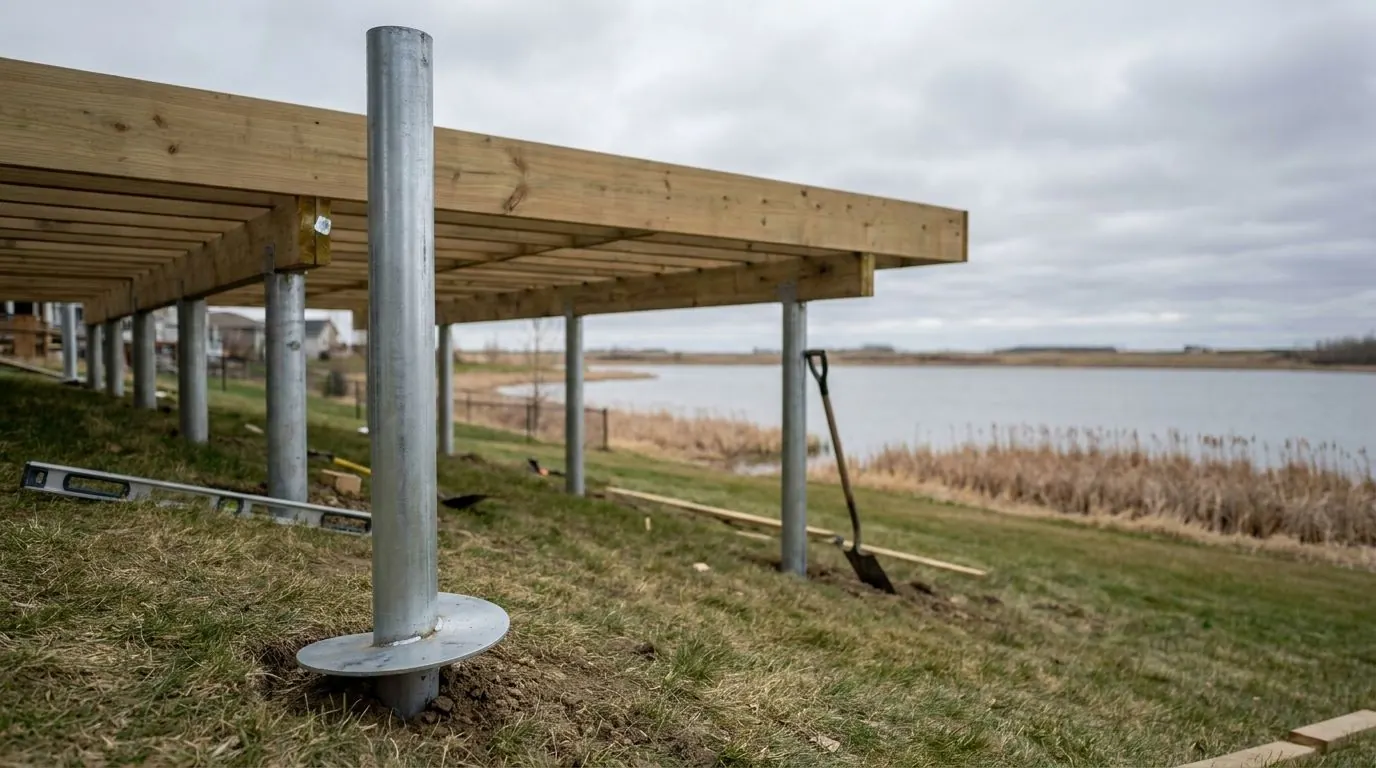

Lakeside lots produce work you will not see anywhere else on our service list: decks stepping down toward the water, shoreline gazebos, gangway and lift supports, and stairs on soft ground where a concrete footing would be both awkward to place and prone to movement. These structures sit in wet, weak soil and take horizontal and uplift load from wind, ice and use, so tension capacity and corrosion allowance belong in the conversation alongside bearing.

The inland communities are a different job entirely — rear decks, hot tub supports, detached garages, additions and clay-driven foundation stabilisation on newer suburban housing with open, easy access. Same city, same permit desk, different design problem.
